SM Series
SM Series

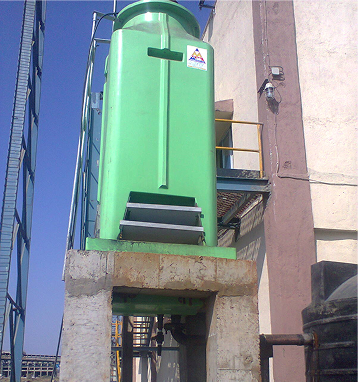

The SM Series is Mihir's unique single-piece, factory-assembled Counterflow cooling tower — built to arrive ready with minimum site work required. It's ideal for small applications below 150 TR, making it a practical choice wherever space and installation time are limited.
Material selection for the SM Series is built entirely around corrosion and chemical resistance, using PVC, Polypropylene, fibreglass reinforced polyester (FRP) and hot-dip galvanized steel for supports — giving the tower long-term durability with virtually no on-site fabrication.

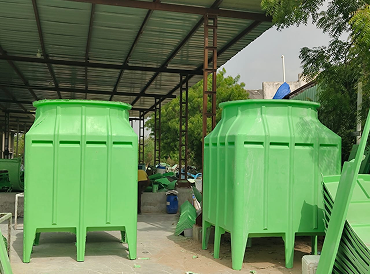

Benefit of Service
- Single-piece factory-assembled construction with minimum site work
- Ideal for small applications below 150 TR
- Built from PVC, Polypropylene, FRP and hot-dip galvanized steel for full corrosion resistance
Corrosion-Resistant Structure
Structural supports in Pultruded FRP with MSHDG hardware (stainless steel optional) — built for highly corrosive applications.
Faster Execution
Minimum site activities and low operating weight mean quicker installation with less on-site work.
Energy Efficient
Aerofoil-shaped, hollow FRP fan blades on an induced-draft counterflow design for optimum airflow efficiency.
High Cooling Capacity
Engineered to cool up to 4,000 m³/hr/cell, with a continuously formed casing for a smooth finish on both sides.
More information
-
Single-Piece Factory Assembly
-
Ideal for Small ApplicationsDesigned for applications below 150 TR, making it well-suited for compact cooling requirements.
-
Fill Material & Water DistributionPVC fill material (max. temperature 50°C) paired with a GI/PVC pipe water distribution system and PP nozzles for even water spread.
-
Material Selection for Corrosion ResistanceMaterials are selected specifically for complete resistance to corrosion and chemicals — PVC, Polypropylene, fibreglass reinforced polyester (FRP), and hot-dip galvanized steel for supports.
Mihir Engineers Pvt. Ltd. — manufacturers of Mihir Cooling Towers since 1976. Pioneers of FRP and Round Bottle Shape cooling tower technology in India.
